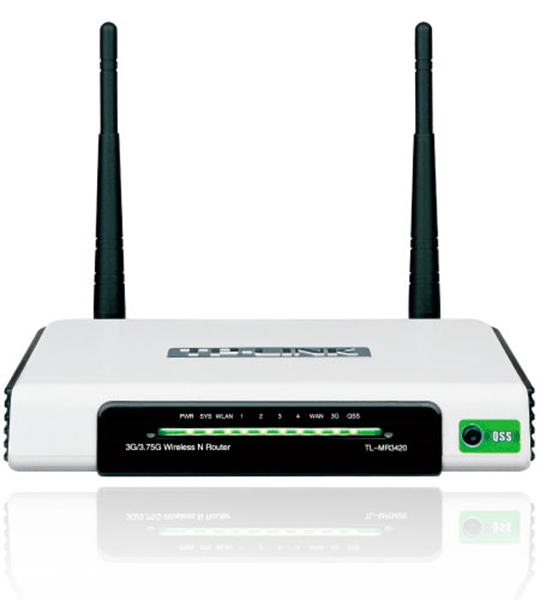

TP-LINK TL-MR3420 3G/3.75G Wireless N Router

Sorry - this product is no longer available

Quick Code: 2169
Availability: In stock
Manufacturer: TP Link
SKU: NET-TL-MR3420
Manufacturer part number: TL-MR3420
£32.10
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Allows you to quickly set up a 300Mbps wireless network on-the go and share a 3G/3.75G mobile connection. By connecting a UMTS/HSPA/EVDO USB card to the router, a Wi-Fi hotspot is instantly established allowing users to share an Internet connection anywhere 3G/3.75G coverage is available. So whether you're on the train, camping, or at a construction site, you'll have a reliable wireless connection to accommodate your networking needs.   Always Connected Nothing is more frustrating than losing your Internet connection in the middle of your work. To avoid such interruptions and provide our customers with an always-online connection, TP-LINK is introducing the TL-MR3420, a robust 3G/3.75G wireless N router with true 3G/WAN failover capability. You can set a primary link, 3G/3.75G or WAN (xDSL/Cable). TL-MR3420 switches to the secondary link when your primary service is interrupted. Once the service is restored, the router will automatically failback to the primary link-keeping your business online with the minimal interruption to users

Features:

  • Compatible with UMTS/HSPA/EVDO USB modems, tested in the field
  • 3G/WAN failover guarantees an 'always-online' Internet connection
  • Wireless N speed up to 300Mbps
  • Supports PPPoE, Dynamic IP, Static IP, PPTP, L2TP Cable Internet access
  • SST technology dramatically increases link robustness and stability
  • CCA technology enhances your signal stablility by automatically avoiding channel conflicts
  • Wireless security encryption easily at the push of the QSS button
  • WDS wireless bridge provides seamless bridging to expand your wireless network
  • IP based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC

Specification:

Software Specification
Standards IEEE 802.11n/g/b, IEEE 802.3/3u, USB 2.0
Wireless Signal Rates With Automatic Fallback 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)
Frequency Range 2.4-2.4835GHz
Wireless Transmit Power (MAX) 20dBm(Max. EIRP)
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
Receiver Sensitivity 270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER



Hardware Specification
Interface USB 2.0 Port for UMTS/HSPA/EVDO USB Modem 1 10/100Mbps WAN Port, 4 10/100Mbps LAN Ports, support the auto-Negotiation and auto-MDI/MDIX
Antenna 3dBi Detachable Omni Directional Antenna X 2
Power Supply Unit Input: Localized to Country of Sale Output: 9VDC / 0.85A Switching PSU
Operating temperature 0°C~40°C (32℉~104℉)
Storage temperature -40°C~70°C (-40℉~158℉)
Relative humidity 10% ~ 90%, Non Condensation
Storage Humidity 5%~95% Non-Condensing
Dimensions 6.9 x 4.4 x 1.2 in. (174 x 111 x 30 mm)
