The H61M U3S3 brings all the up to date technologies of USB3.0 and SATA 6GB/s to an affordable, reliable entry level system perfect for the home user or business PC.
Solid Capacitor for CPU Power
Supports Intel K-Series CPU
Supports Dual Channel DDR3 1333
Supports Intel HD Graphics 2000/3000
Dual VGA Output options: D-Sub, DVI-D
6 x USB 2.0, 4 x SATA2
Supports ASRock XFast RAM, XFast LAN, XFast USB Technologies
Supports AXTU, Graphical UEFI, Instant Boot, Instant Flash, APP Charger, SmartView
Combo Cooler Option (C.C.O.)
CPU
Supports 2nd Generation Intel Core i7 / i5 / i3 in LGA1155 Package
Supports Intel Turbo Boost 2.0 Technology
Supports Intel K-Series CPU
Supports Hyper-Threading Technology
Chipset
Intel H61
Memory
Dual Channel DDR3 memory technology
2 x DDR3 DIMM slots
Supports DDR3 1333/1066 non-ECC, un-buffered memory
Max. capacity of system memory: 16GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
32Mb AMI UEFI Legal BIOS with GUI support
Supports "Plug and Play"
ACPI 1.1 Compliance Wake Up Events
Supports jumperfree
SMBIOS 2.3.1 Support
IGPU, DRAM, PCH, CPU PLL, VTT, VCCSA Voltage Multi-adjustment
Audio, Video and Networking
Graphics
Supports Intel HD Graphics Built-in Visuals : Intel Quick Sync Video, Intel Clear Video HD Technology, Intel HD Graphics 2000/3000, Intel Advanced Vector Extensions (AVX)
Pixel Shader 4.1, DirectX 10.1
Max. shared memory 1759MB
Dual VGA Output: support DVI-D and D-Sub ports by independent display controllers
Supports DVI with max. resolution up to 1920x1200 @ 60Hz
Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz
Supports HDCP function with DVI port
Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI port
*Due to chipset limitation, the Blu-ray playback of Intel HD Graphics is only supported under Windows Vista and Windows 7.
Audio
5.1 CH HD Audio (Realtek ALC662 Audio Codec)
LAN
Atheros PCIEx1 LAN AR8152
Speed: 10/100 Ethernet
Supports Wake-On-LAN
Supports PXE
Expansion / Connectivity
Slots
1 x PCI Express 2.0 x16 slot (blue @ x16 mode)
2 x PCI Express 2.0 x1 slots
Connector
4 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions
1 x IR header
1 x Print Port header
1 x COM port header
CPU/Chassis/Power FAN connector
24 pin ATX power connector
8 pin 12V power connector
Front panel audio connector
2 x USB 2.0 headers (support 4 USB 2.0 ports)

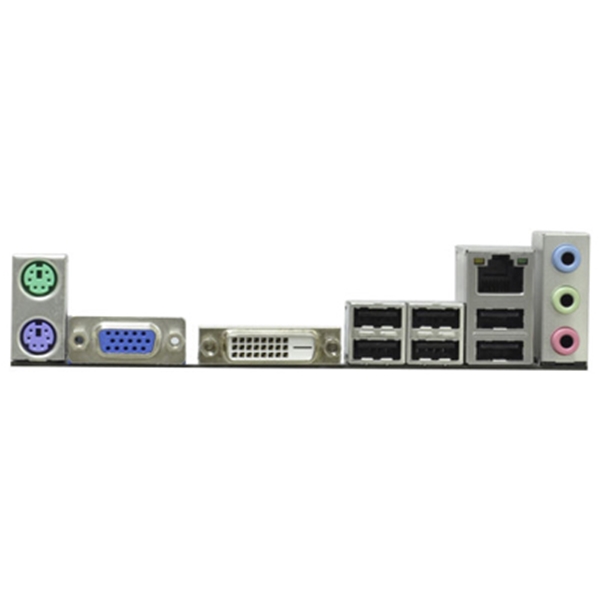

Rear Panel I/O
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
1 x VGA/D-Sub Port
1 x VGA/DVI-D Port
6 x Ready-to-Use USB 2.0 Ports
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jack: Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Unique Features
ASRock Extreme Tuning Utility (AXTU)
Instant Boot
ASRock Instant Flash
ASRock AIWI
ASRock APP Charger
SmartView
ASRock XFast USB
Hybrid Booster:
ASRock U-COP
Boot Failure Guard (B.F.G.)
Combo Cooler Option (C.C.O.)
Good Night LED
Hardware Monitor
CPU Temperature Sensing
Chassis Temperature Sensing
CPU/Chassis/Power Fan Tachometer
CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
CPU/Chassis Fan Multi-Speed Control
Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm
Solid Capacitor for CPU Power
OS Support
Microsoft Windows 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit compliant
Certifications
FCC, CE, WHQL
ErP/EuP Ready (ErP/EuP ready power supply is required)
