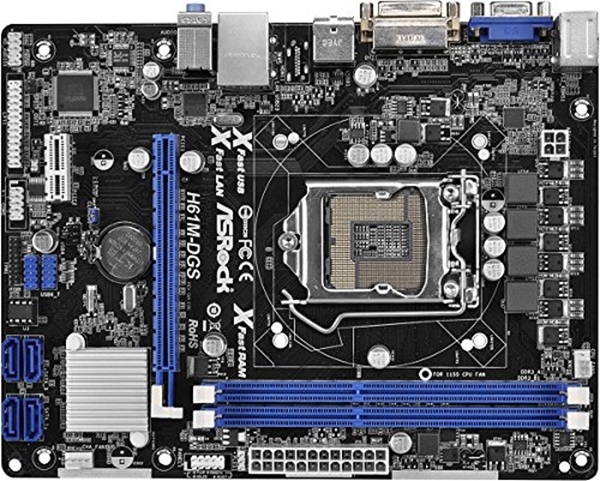

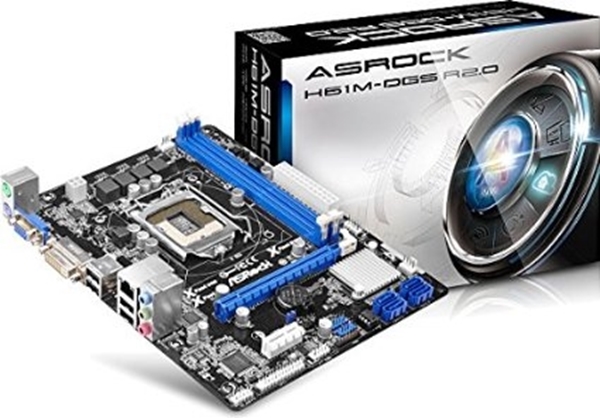

Product DescriptionAsrock H61M-DGS R2.0, Intel H61, 1155, Micro ATX, 2 DDR3, PCIe3, GB LAN
Motherboard Type Desktop
Form Factor Micro ATX
Socket1155 CPU
ChipsetIntel H61
RAM TechnologyDDR3 (Dual Channel)RAM Slots2 x DIMMRAM Speeds1600/1333/1066 MHz
Maximum Memory16GB
GraphicsSupports Intel HD GraphicsGraphics
Ports1 x VGA
1 x DVI-DMulti-GPU
Support-PCI Express1 x PCIe 3.0 x16
1 x PCIe 2.0 x1PCI-
Storage4 x SATA IIRAID-
LANGB LAN
Audio5.1 CH HD Audio (Realtek ALC662 Audio Codec)
USB Ports8 x USB 2.0 port(s)
(4 at back panel, 4 at mid-board)

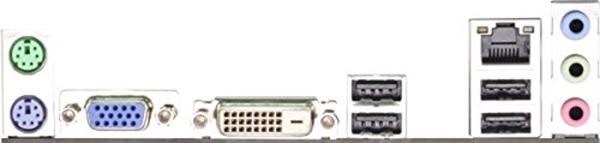

Back Panel I/O Ports1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
4 x USB 2.0 Ports
1 x RJ-45Internal I/O Connectors2 x USB 2.0 connectors
1 x IR
1 x Print Port
1 x COM Port
1 x Power LED
1 x Chassis Intrusion
1 x TPM
1 x CPU Fan
1 x Chassis Fan
1 x 24 pin ATX
1 x 4 pin 12V
1 x Front Audio
1 x SPDIF Out
Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables
Package Type
RetailAdditional
