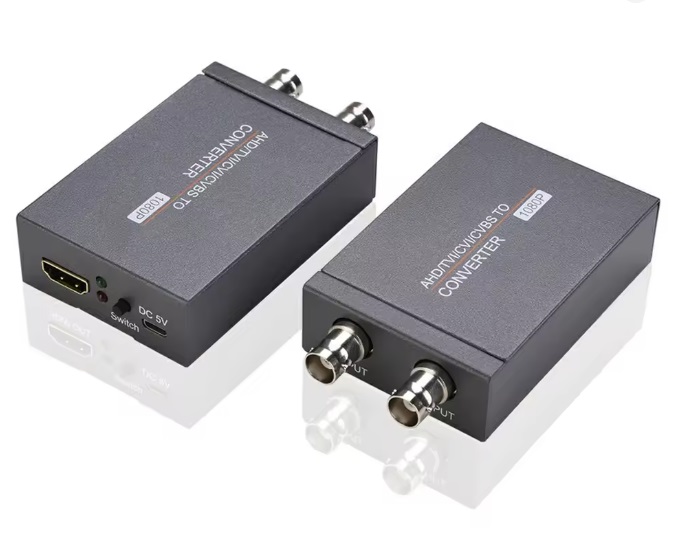

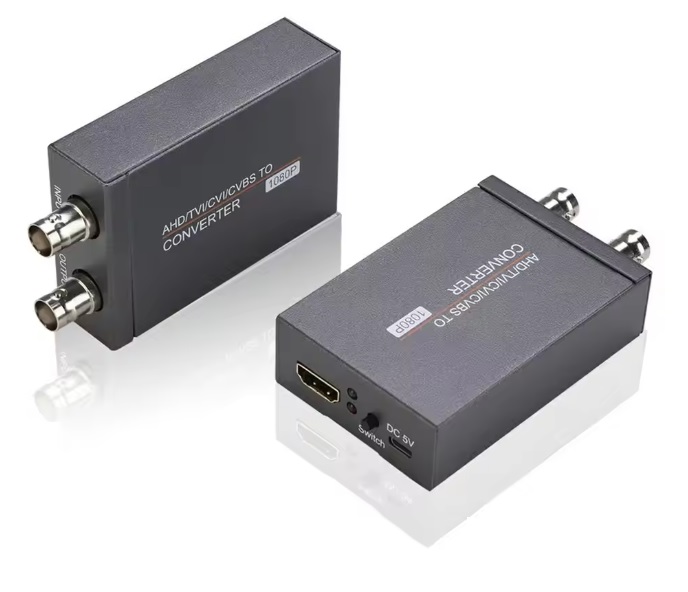

AHD/TVI/CVI/CVBS To HDMI-Compatible Converter 3MP/4MP/5MP/8MP Video Converter 720P/1080P 60HZ Camera Signal Transformer Full HD
Feature:

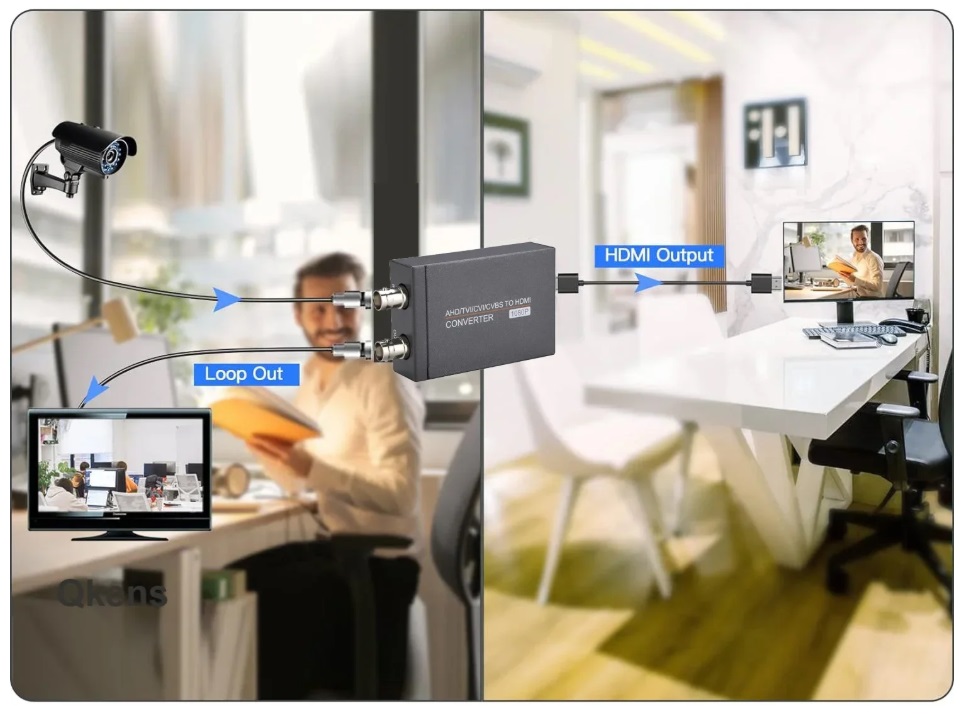

1. Multi-Format Compatibility: This TVI/CVI/AHD/CVBS-to-HDMI-compatible converter seamlessly converts various analog video signals (TVI, CVI, AHD, and CVBS) to a 720/1080P HDMI-compatible signal, making it ideal for use in a wide range of applications, including shopping malls, home surveillance, HD monitoring, elevator monitoring, and traffic monitoring.
2. Output Channel Selection: You can choose the TI CVI AHD CVBS source adapter output channel as the output format for your connected display.
3. LED Indicator: The LED indicator on the video converter turns red when you power it on, indicating that it's ready for use. If the input source TVI CVI AHD CVBS resolution is compatible with the supported HDMI-compatible display resolution, an HDMI-compatible signal can be output through the HDMI-compatible port.
4. Switchable HDMI-compatible Output: The switch on the signal adapter can change the HDMI-compatible output to either 720P or 1080P. When the power is turned off, it stores the current HDMI-compatible output format.
5. OSD Display: The on-screen display (OSD)of camera signal converter will show the current input TVI/CVI/AHD format, and if there's no input signal or the format doesn't match this converter, the display will show a rainbow.
Specification:
Type: HDMI-compatible Converters
Cable Length: 1.5 m
Power adapter: DC USB 5V/1A
TVI/CVI/AHD input resolution:
TV/TV: 720P@30Hz, 1080P@30Hz, 3MP, 4MP, 5MP, 8MP
CVI: 720P, 1080P, 4MP, 8MP
CVBS: 480i, 576i
HDMI output resolution:
1080P@60Hz
720P@60Hz
Impedance: 75Ω
Material: Iron case
Weight: 129g
Size: 97 x 55 x 23mm/3.82 x 2.17x 0.91inch
