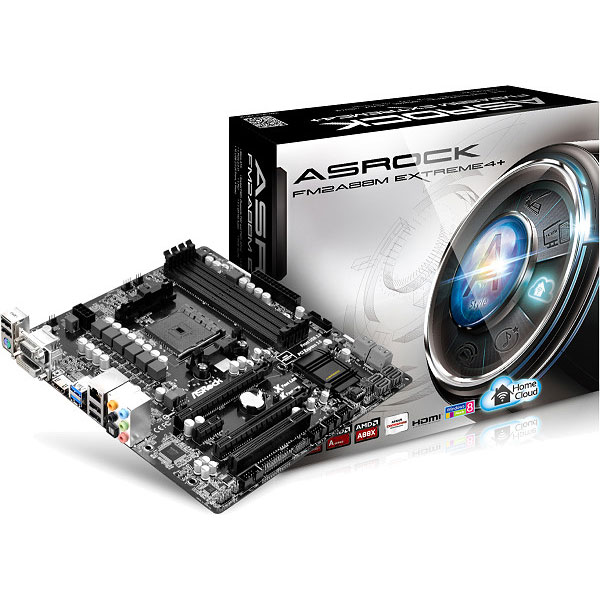

ASRock FM2A88M Extreme4+ Motherboard

Quick Code:2851
SKU: MBD-ASR-FM2A88M
Manufacturer part number: 90-MXGRE0-A0UAYZ
Manufacturer: ASrock
£65.46

This motherboard supports Security Wake On Internet Technology with the onboard Qualcomm Atheros LAN, so you can connect with your PC from anywhere in the world. You will be able to power your PC on or turn it off, monitor and take control of it remotely with another smartphone, tablet or computer.

This motherboard is compatible with both AMD FM2 and FM2+ APUs. Please note that some new features may be only supported by FM2+ APUs.

ASRock is determined to use high quality materials to build the best motherboards, that's why all the capacitors on this motherboard are built with 100% solid capacitors. These solid capacitors bring long lasting durability and ultra stable performance

Specification:

  • BIOS: 64Mb AMI UEFI Legal BIOS with GUI support‚Supports Plug and Play‚ACPI 1.1 Compliant wake up events‚Supports jumperfree‚SMBIOS 2.3.1 support‚DRAM, CPU Voltage multi-adjustment
  • Chipset: AMD A88X
  • CPU Interface: Socket FM2+
  • RAM Technology: DDR3 (Dual Channel)
  • RAM Slots : 4 x 240-pin
  • RAM Speeds: DDR3 1066‚DDR3 1333‚DDR3 1600‚DDR3 1866‚DDR3 2133‚DDR3 2400 (O.C)‚DDR3 2600+ (O.C)
  • Max. Memory Support: 64GB
  • Expansion Slots: 1 x PCI Express 3.0 x16 (x16)‚1 x PCI Express 2.0 x16 (x4)‚1 x PCI Express 2.0 x1‚1 x PCI
  • Storage Controller(s): 8 x S-ATA/600‚RAID 0‚RAID 1‚RAID 5‚RAID 10
  • On-Board LAN: PCIE x1 Gigabit LAN 10/100/1000 Mb/s‚Qualcomm Atheros AR8171‚Supports Qualcomm Atheros Security Wake On Internet Technology‚Supports Wake-On-LAN‚Supports Energy Efficient Ethernet 802.3az‚Supports PXE
  • On-Board Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
  • On-Board Video: Accelerated Processing Unit (APU)
  • Back Panel I/O Ports: 1 x PS/2 Keyboard/Mouse combo port‚1 x VGA‚1 x DVI-D‚1 x HDMI‚1 x Optical S/PDIF out‚4 x USB 2.0 ports‚2 x USB 3.0 ports‚1 x LAN‚5 x Audio jacks
  • Internal I/O Connectors: 1 x 24-pin ATX main power connector‚1 x 8-pin ATX 12v Power‚1 x IR header‚1 x Print port header‚1 x COM port header‚1 x TPM header‚3 x USB 2.0 headers‚1 x USB 3.0 header
  • Form Factor: Micro ATX

This motherboard supports Security Wake On Internet Technology with the onboard Qualcomm Atheros LAN, so you can connect with your PC from anywhere in the world. You will be able to power your PC on or turn it off, monitor and take control of it remotely with another smartphone, tablet or computer.

This motherboard is compatible with both AMD FM2 and FM2+ APUs. Please note that some new features may be only supported by FM2+ APUs.

ASRock is determined to use high quality materials to build the best motherboards, that's why all the capacitors on this motherboard are built with 100% solid capacitors. These solid capacitors bring long lasting durability and ultra stable performance

Specification:

  • BIOS: 64Mb AMI UEFI Legal BIOS with GUI support‚Supports Plug and Play‚ACPI 1.1 Compliant wake up events‚Supports jumperfree‚SMBIOS 2.3.1 support‚DRAM, CPU Voltage multi-adjustment
  • Chipset: AMD A88X
  • CPU Interface: Socket FM2+
  • RAM Technology: DDR3 (Dual Channel)
  • RAM Slots : 4 x 240-pin
  • RAM Speeds: DDR3 1066‚DDR3 1333‚DDR3 1600‚DDR3 1866‚DDR3 2133‚DDR3 2400 (O.C)‚DDR3 2600+ (O.C)
  • Max. Memory Support: 64GB
  • Expansion Slots: 1 x PCI Express 3.0 x16 (x16)‚1 x PCI Express 2.0 x16 (x4)‚1 x PCI Express 2.0 x1‚1 x PCI
  • Storage Controller(s): 8 x S-ATA/600‚RAID 0‚RAID 1‚RAID 5‚RAID 10
  • On-Board LAN: PCIE x1 Gigabit LAN 10/100/1000 Mb/s‚Qualcomm Atheros AR8171‚Supports Qualcomm Atheros Security Wake On Internet Technology‚Supports Wake-On-LAN‚Supports Energy Efficient Ethernet 802.3az‚Supports PXE
  • On-Board Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
  • On-Board Video: Accelerated Processing Unit (APU)
  • Back Panel I/O Ports: 1 x PS/2 Keyboard/Mouse combo port‚1 x VGA‚1 x DVI-D‚1 x HDMI‚1 x Optical S/PDIF out‚4 x USB 2.0 ports‚2 x USB 3.0 ports‚1 x LAN‚5 x Audio jacks
  • Internal I/O Connectors: 1 x 24-pin ATX main power connector‚1 x 8-pin ATX 12v Power‚1 x IR header‚1 x Print port header‚1 x COM port header‚1 x TPM header‚3 x USB 2.0 headers‚1 x USB 3.0 header
  • Form Factor: Micro ATX
